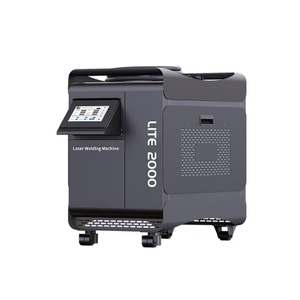

Hand-held 3 in 1 laser welding machine, a cutting-edge tool designed for precision welding applications. This innovative device offers fast and efficient welding capabilities, allowing users to complete projects in a fraction of the time compared to traditional methods.
The Laser Handheld Welder is equipped with advanced technology that ensures seamless and aesthetically pleasing welds. Its high-powered laser beam delivers precise heat control, resulting in clean and visually appealing weld seams.
Whether you are working on intricate metalwork or industrial projects, our Laser Handheld Welder is the perfect solution for achieving professional results. Say goodbye to messy and time-consuming welding processes, and experience the efficiency and quality that our product has to offer.
Benefits of the laser welding machine:
1. Rapid welding pace, 2~10 times quicker than conventional welding methods.
2. Simple operation requiring no specialized training.
3. Welded seams are aesthetically pleasing and smooth, eliminating the need for polishing and saving time.
4. Workpieces are securely welded without deformation or visible welding scars.5. Laser welding requires fewer consumables and boasts a longer lifespan.
6. Laser welding is safer and more eco-friendly.
Hand-held Laser Welding Machine Specifications:
1 Model: Hand-held Fiber Laser Welding Machine
2 Laser Power: 1500W Raycus Laser Source
3 Laser Wavelength: 1070 NM
4 Fiber Length: Standard 10M / Maximum 15M
5 Operation Mode: Continuous/Modulated
6 Welding Speed Range: 0~120 mm/s
7 Cooling System: Industrial Water Chiller
8 Working Environment Temperature Range: 15~35 ℃
9 Working Environment Humidity Range: < 70% No Condensation
10 Recommended Welding Thickness: 0.5-5mm
11 Welding Gap Requirements: ≤0.5mm
12 Features Auto Wire Feeder
13.Including stainless wire,carbon steel wire, and
aluminum wire
14. CE certificated
The laser welding machine Parameter
NO. | Name | Parameter |
1 | Machine model | Hand-held fiber laser welding machine |
2 | laser power | 1500W |
3 | laser wave length | 1070 NM |
4 | Fiber length | standard10M / Maximum 15M |
5 | operate mode | continuation/ modulate |
6 | Welding speed range | 0~130 mm/s |
7 | Cooling chiller | Industrial water chiller |
8 | Working environment temperature range | 15~35 ℃ |
9 | Humidity range of working environment | < 70% No condensation |
10 | Welding thickness recommendations | 0.5-5mm |
11 | Welding gap requirements | ≤0.5mm |
12 | working voltage | 220 V |
Main Parts of the laser welding machine：
1.Laser Welding Joint of the Handheld laser welding machine
*Self-developed super Mini welding head (0.6KG), light and convenient
*Original rotating protective lens design, 6 times the service life
*System linkage control wire feeding, more accurate wire feeding
*Original wire feeding fixture, flexible and convenient wire feeding switching
*Equipped with a mobile gun head placement rack, safe and convenient
*Patented cabinet design, uniform heat dissipation, efficient and stable
2.Max generation fiber laser source：
Enhanced laser generator boosts welding quality
An advanced control system increases the size of the light spot, resulting in a more precise and well-defined welding seam.
3.Auto Wire Feeder
When the welding gap is large or a stronger welding strength is required, a wire feeder is required.
When not needed, the wire feeder function can be turned off.
System linkage control wire feeding, more accurate wire feeding!
Applications of Handheld Laser Welding Machines in Various Industries
Handheld laser welding machines are extensively utilized in a variety of industries, including electronics, machinery, automobiles, and aerospace. These machines play a crucial role in welding small electronic devices in the electronics industry, lightweight metal materials in the machinery industry, automotive parts in the automotive industry, and aircraft structural materials in the aerospace industry.
As technology continues to advance and the manufacturing industry evolves, the potential applications of handheld laser welding machines are vast. These machines are expected to be increasingly utilized across different industries, becoming an indispensable tool for intelligent and efficient manufacturing processes. With their compact structure, versatility, high precision, and efficiency, handheld laser welding machines can significantly enhance welding quality and production efficiency in various sectors.
Welding Sample Show:
