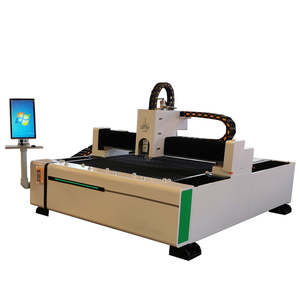

The Fiber Laser cutting machine is a kind of equipment that uses laser beam as cutting tool, which is widely used in cutting and processing of metal materials. The main working principle of laser cutting machine is to locally heat the material to a molten or gasified state through a high-energy laser beam, thereby achieving cutting.
Main features of Fiber laser cutting machine:
1. High precision: The laser cutting beam is thin, which can achieve high-precision cutting and is suitable for processing complex graphics
2. Wide adaptability: It can cut various metal materials, such as stainless steel, aluminum, copper, carbon steel, etc.
3. Fast cutting speed: Compared with traditional cutting methods, laser cutting speed is faster and improves production efficiency.
4. Non-contact cutting: Laser cutting is non-contact, which reduces the mechanical stress and deformation of the material.
5. High degree of automation: Modern laser cutting machines are usually equipped with CNC systems, which can realize automatic operation and reduce labor costs.
Main application areas of the fiber laser cutting machine:
·Metal processing: production of various metal parts in the manufacturing industry
·Advertising industry: production of various advertising signs, display racks, etc.
Home decoration: cutting various metal parts
Automotive industry: used for processing and manufacturing of automotive parts.
·Electronic industry: used for cutting components such as circuit boards and housings
The Main Parameter of the fiber laser cutting machine:
Model | Fiber laser cutting machine |
Working Area | 1500*3000mm |
Laser Power | 1.5kw |
Laser Generator | MAX |
Laser Wave Length | 1064nm |
Working Table | Sawtooth-table |
Maximum Idle Running Speed | 140m/min |
Maximum acceleration | 1.5G |
Position Accuracy | ±0.02mm/m |
Repeat Positional Accuracy | ± 0.01mm |
Control System | PC control with CYPCUT |
Position Type | red dot |
Power Consumption | ≤6KW |
Working Voltage | 380V ±10 % 50/60Hz |
Auxiliary Gas | oxygen,nitrogen,air |
Working life of fiber module | More than 100000 hours |
Fiber laser cutting head | Raytools Auto focus BM110 laser cutting head |
Cooling System | Hanli industrial water chiller |
Work Environment | 0-45°C, Moisture 45-85% |
Delivery time | 25 working days |
Machine Main Parts display of the laser cutting machine
1.The laser cutting machine use Bochu controller FASCUT2000E
Precision Control: The controller may offer high-precision motion control, which is essential for applications that require complex motion.
User Interface: It may come with a user-friendly interface, possibly with an LCD screen and keyboard for easy programming and operation.
Multi-axis Control: The FASCUT2000E may support multi-axis control to handle complex machining tasks.
Programmability: It may allow a variety of programming options, possibly supporting industry-standard languages or proprietary programming environments.
2.The laser cutting machine use laser generator MAX
Max laser generators usually use advanced laser technology, have high photoelectric conversion efficiency, and can produce powerful laser output at low energy consumption. At the same time, they have strong stability and precise control. MAX laser generators are compact in design, which can effectively save space. At the same time, they have a friendly human-machine interface, extremely low maintenance costs, and wide application.
3.The fiber laser cutting machine use Raytools auto focus laser cutting head BM110
1. Enhanced Design: Modular structure for easy maintenance and minimal downtime.
2. Triple Protection: Three lenses for maximum protection, including a high-quality collimating focusing lens.
3. Long-lasting Performance: Dual optical water cooling channels for extended continuous operation.
4. Superior Dust Resistance: IP65 dustproof rating, patented lens cover plate for complete dust protection.
5. Precise Automatic Focus: Closed-loop stepper motor system to prevent step loss.
6. Rapid Focus Speed: Achieve 100mm/s focus speed with 0.01mm repeat accuracy.
4.Baokun fiber laser cutting machine use Japan Fuji servo motor and driver
Japan's Fuji servo motors are well-known for their high performance and reliability, and are widely used in industrial automation, robotics, and other high-precision control systems. Its main features include: high-precision control, fast response, high efficiency, low noise, and other advantages. Fuji servo motors generally have good durability and adaptability, and can work stably for a long time in harsh environments.
Fuji servo motors have become the first choice for many industrial automation solutions with their excellent performance and flexible application capabilities.
5.Taiwan Hiwin Guide Rail Z Axis TBI Ball Screw Transmission
1. Enhanced Precision Positioning
Utilizing a linear guide as the guide rail ensures precise positioning accuracy at the μm level due to the rolling friction mechanism, preventing any slippage during bed movement.
2. Efficient Power Usage for High-Speed Motion
The minimal friction of the linear guide rail reduces the power required to operate the bed, particularly during frequent back-and-forth movements, leading to significant energy savings for the machine. Additionally, the low heat generation from friction makes it ideal for high-speed operations.
6.Baokun laser cutting machine equipped Dust Removal System for Partitions
Innovative development of a forced cooling method to eliminate dust in individual processing zones. The system has a straightforward design, effectively seals off exhaust, and consumes minimal energy. It enhances dust removal in specific areas, resulting in improved workpiece quality and addresses environmental concerns. Additionally, it provides operators and machines with effective protection.
Cutting Sample of the Fiber Laser cutting machine
